Phosphoric Acid Evaporators
Phosphoric Acid Evaporators
GIL make Phosphoric Acid Evaporators are used worldwide for their satisfactory uninterrupted service in concentrating phosphoric acid from 26–32% P₂O₅ to 50–54% P₂O₅.
Phosphoric Acid Evaporator (Green Acid / Fertilizer Grade)
Main commercial method of manufacturing Phosphoric acid involves vacuum evaporation to concentrate Phosphoric acid from 26–32% P₂O₅ to 50–54% P₂O₅ using a Forced Circulation Evaporator.
System Requires
- Graphite Forced Circulation Evaporator
- Flash Vessel
- Circulation Pump
- Condenser
Worldwide Recognition
GIL make Phosphoric Acid Evaporators are used worldwide for their satisfactory uninterrupted service.

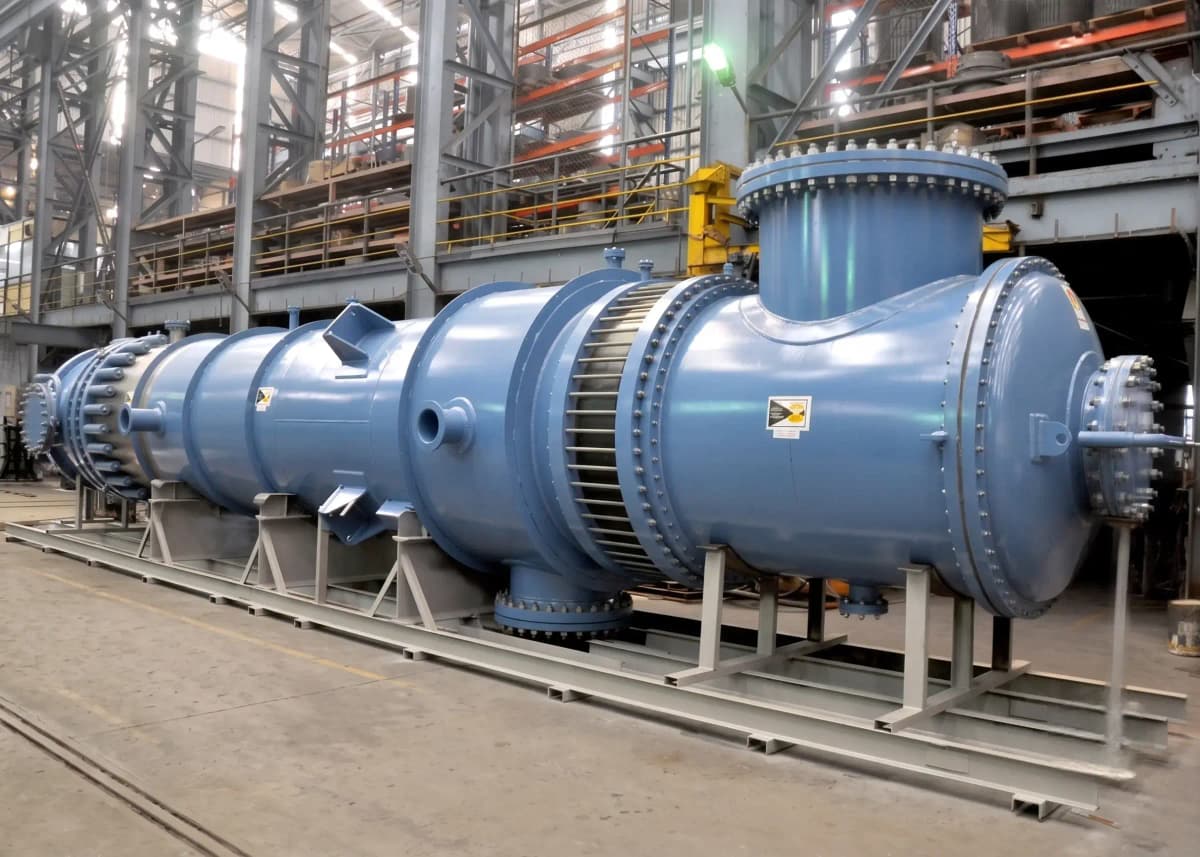

Features of Phosphoric Acid Evaporators
Engineered for high-performance operation with advanced materials and robust construction for demanding industrial environments.
Key Features
- Tube sizes available: 22 mm ID × 32 mm OD
- 25 mm ID × 38 mm OD
- Most popularly used: 38 mm ID × 51 mm OD
- Ceramic oxide coated tube sheets and ceramic oxide sleeves to resist abrasion and avoid erosion
- Highly thermal conductive tubes
- Carbon fibre reinforced graphite tubes to enhance strength
- Baffles in impregnated graphite
- Carbon steel shell with bottom 1 meter in UB6 (SS904L) / SS316L
- Domes / End chambers – UB6 (SS904L) or rubber lined carbon steel
- Robust graphite tubes capable of withstanding high-pressure water jet during maintenance

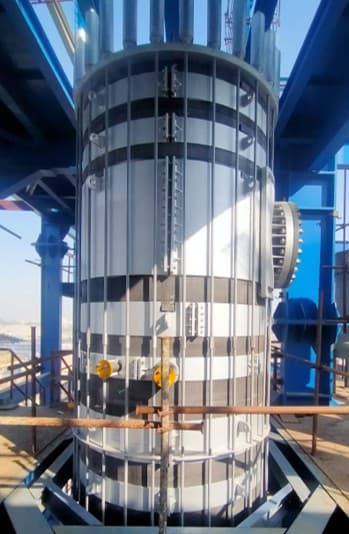

Graphite Equipment in Purified Phosphoric Acid
A complete range of graphite process equipment for purified phosphoric acid production and handling.
- Graphite Shell & Tube Heat Exchangers – For concentration by evaporation and as heat economizers
- Graphite Condensers
- Graphite Separators / Flash Vessels
- Graphite Stripping Columns – Bubble Cap Type
Applications
- Food & Beverages
- Metal Finishing
- Electronics
- Fuel Cells
- Pharmaceuticals
- Other Related Industries
